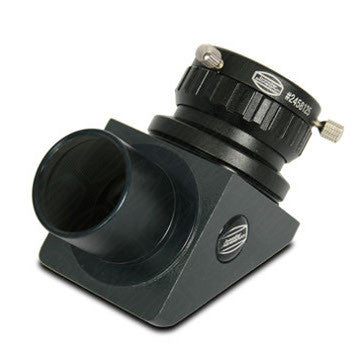

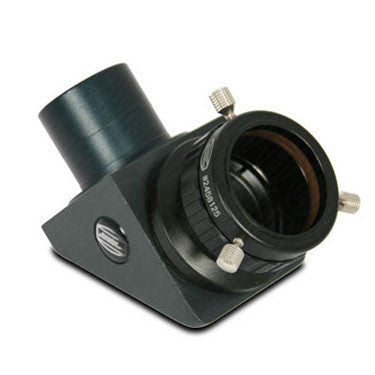

Baader 90º Prism Star Diagonal with 1.25" Nosepiece & Eyepiece Holder

One of the main features of the Baader T2 90° Star diagonal is the large free aperture it offers, but this diagonal is also amazingly flexible in its ability to adapt to almost any telescope system on the market today, without the usual problems of bottlenecking and vignetting during challenging applications. It is for this reason that Baader offers their T2 System diagonal without adapters so that you can have the freedom of designing a diagonal that fits your needs perfectly.

The telescope side of Baader T2 diagonals accepts an entire armada of adapters, including standard items like 1.25" or 2" focuser, or more esoteric items like an original M44 Zeiss thread to connect to a Russian Mak or a Vixen OTA. On the eyepiece side many people use the Baader Quick Change Ring #6 so that they can mount the Mark V binocular viewer in a way that achieves the shortest possible back focus distance between their telescope and the binocular viewer, but of course you can do whatever you need to do...that's the beauty of the Baader T-2 System!

Please Note: The Baader T-2 Prism Diagonal has a clear aperture of 32mm. It incorporates standard T-2 threads at the input and output faces and is provided as a basic component, without any input or output fittings.
