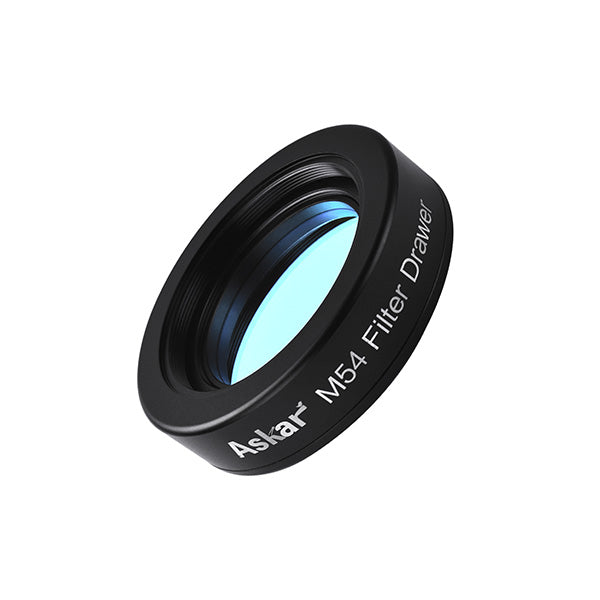

Askar 5-in-1 M54 Filter Drawer for DSLR Camera - Multi-Coated Optical Glass Lens Filter System (UV/CPL/ND/Star/GND) - Perfect for Landscape, Astrophotography & Long Exposure Photography

$90.2

$164

Safe 45%

Askar 5-in-1 M54 Filter Drawer for DSLR Camera - Multi-Coated Optical Glass Lens Filter System (UV/CPL/ND/Star/GND) - Perfect for Landscape, Astrophotography & Long Exposure Photography

Askar 5-in-1 M54 Filter Drawer for DSLR Camera - Multi-Coated Optical Glass Lens Filter System (UV/CPL/ND/Star/GND) - Perfect for Landscape, Astrophotography & Long Exposure Photography

$90.2

$164

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

19 people viewing this product right now!

SKU: 65217875

Guranteed safe checkout

Description

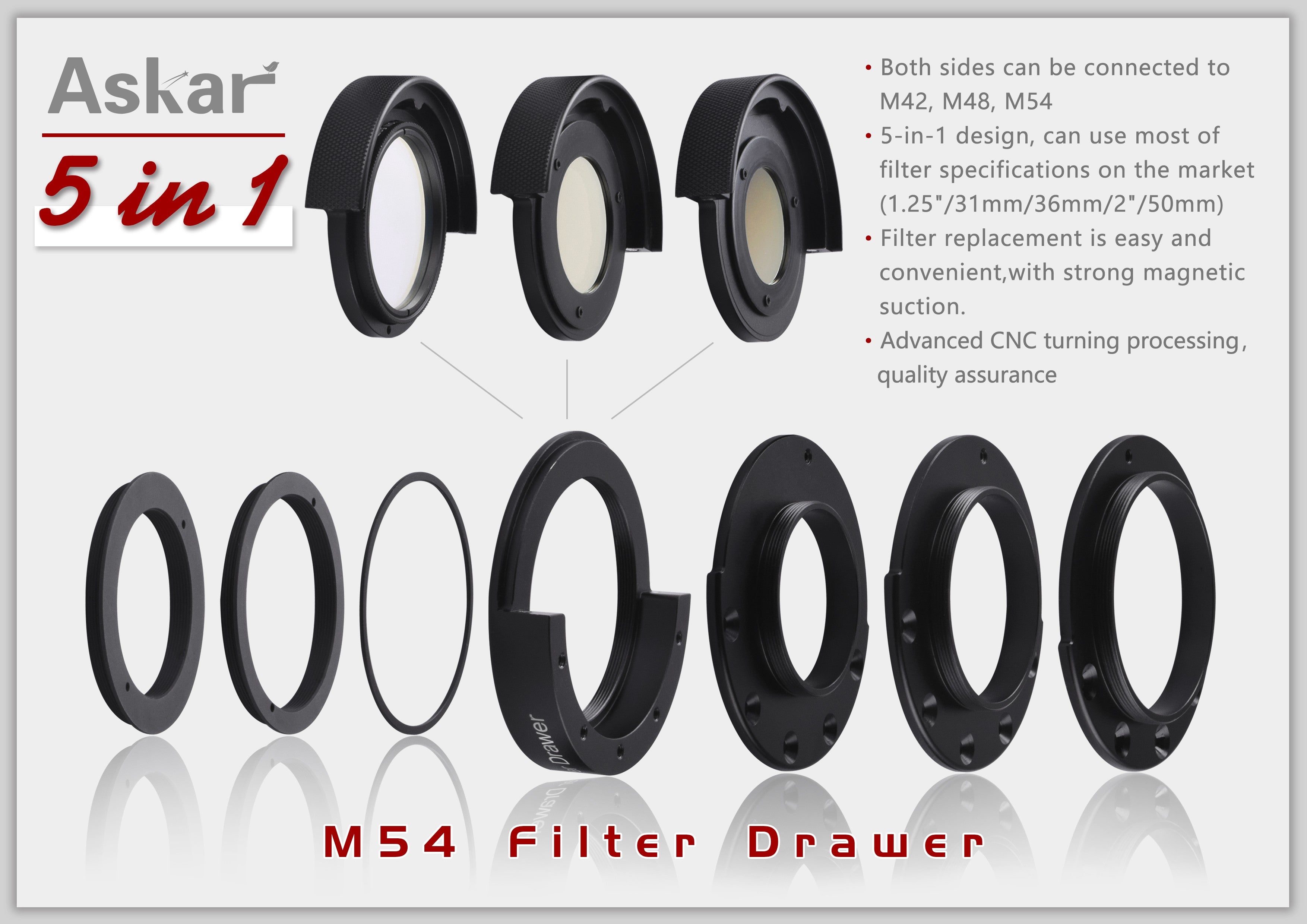

Users are often racked by the task of choosing and matching dazzling filters as well as adapters when it comes to using a filter drawer. It just becomes more confusing for those who are quite new to astrophotography. To solve this problem, Askar introduces a multifunctional filter drawer. The major feature or strength of this filter drawer is its integration of the most marketable filters, telescope and astronomy camera adapters. Users basically don’t need to worry about the related issues any more with this five-in-one filter installation device.

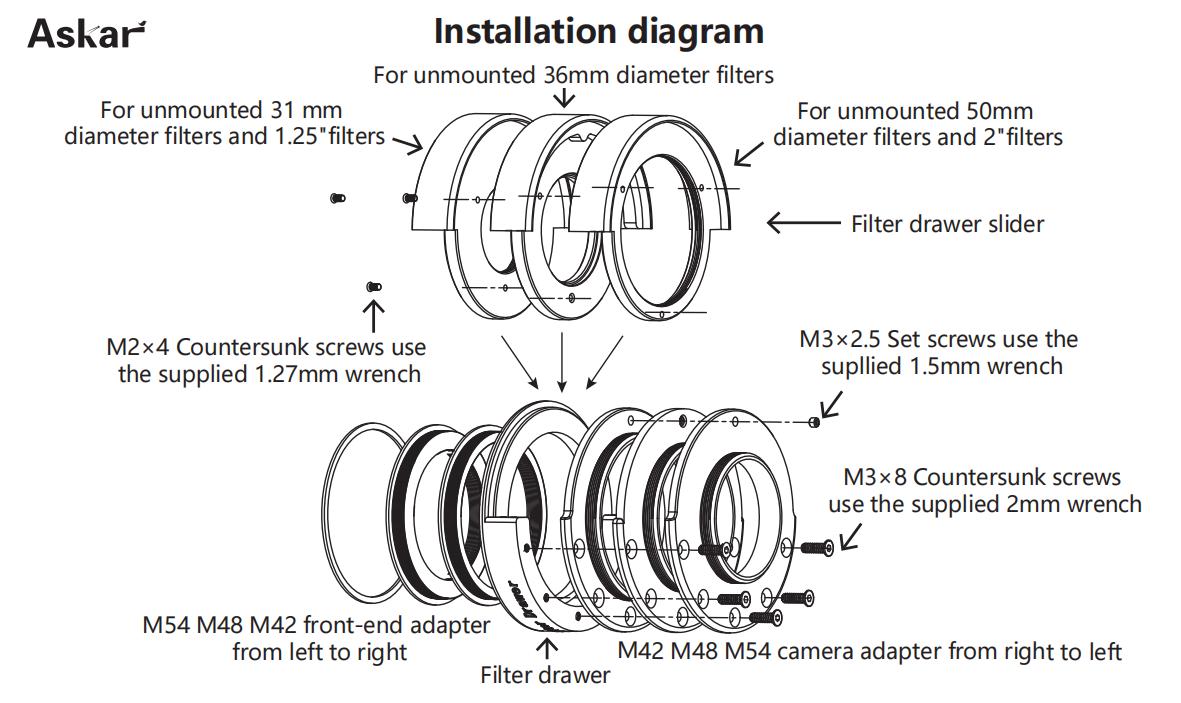

Assembly Steps

Users have to follow the certain steps to successfully assembly the Askar filter drawer and put it into the light path to fit the whole optical system:

1. take out the main body of Askar filter drawer

2. choose a proper camera adapter according to the thread type of your astronomy camera

3. fix the camera adapter on the main body with 5 M3×8 countersink screws and wrench of M2

4. choose a proper telescope adapter according to the thread type of your telescope

5. thread on the telescope adapter

6. connect the filter drawer and your telescope

7. connect your astronomy camera and the filter drawer

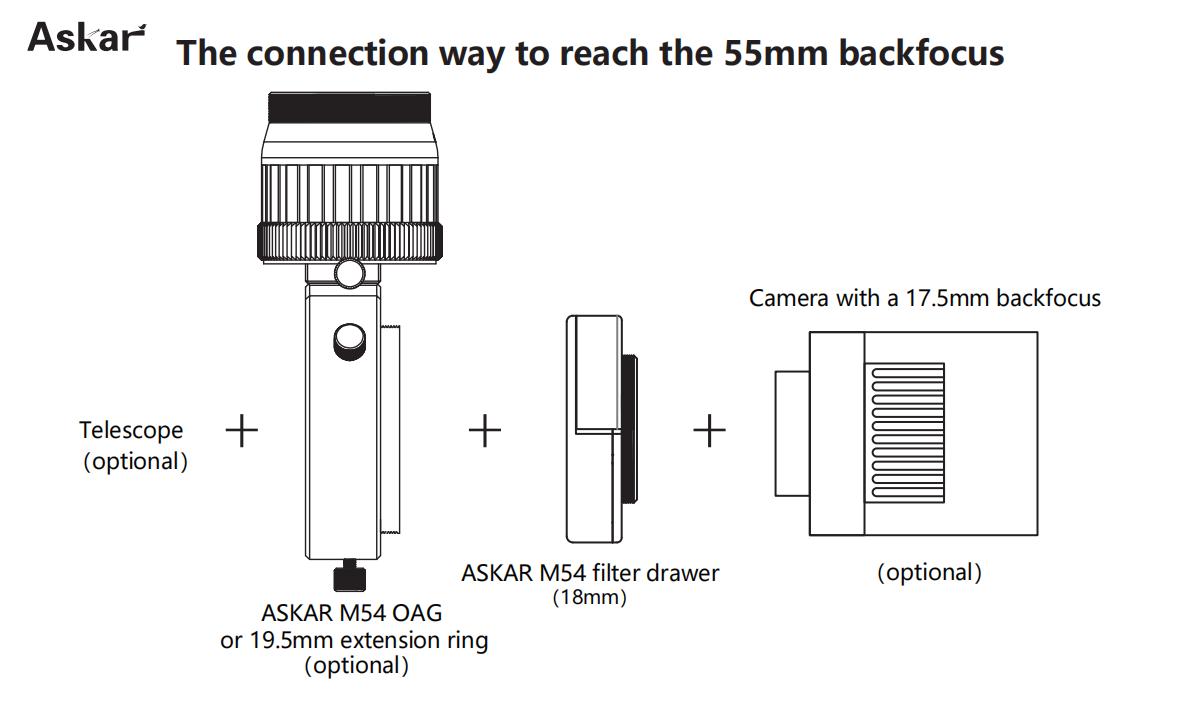

8. make sure that these accessories are tightly connected and the whole system has a correct back focus. You can add extra spacers(optional) to reach the required back focus

9. choose a proper filter slider according to the filter you are going to use. If it’s a 1.25" or 2" mounted filter, directly thread it onto the filter slider. And if it’s a 31mm, 36mm or 50mm unmounted filter, gently put the filter into the circular groove and superimpose a filter holding ring, fix the holding ring with 3 M2×4 countersink screws and the wrench of M1.27 to securely hold the filter between.

10. Insert the filter slider into the Askar filter draw and it’s ready for astrophotography
